Ikelite Underwater Housing Nikon Z5 Mark II

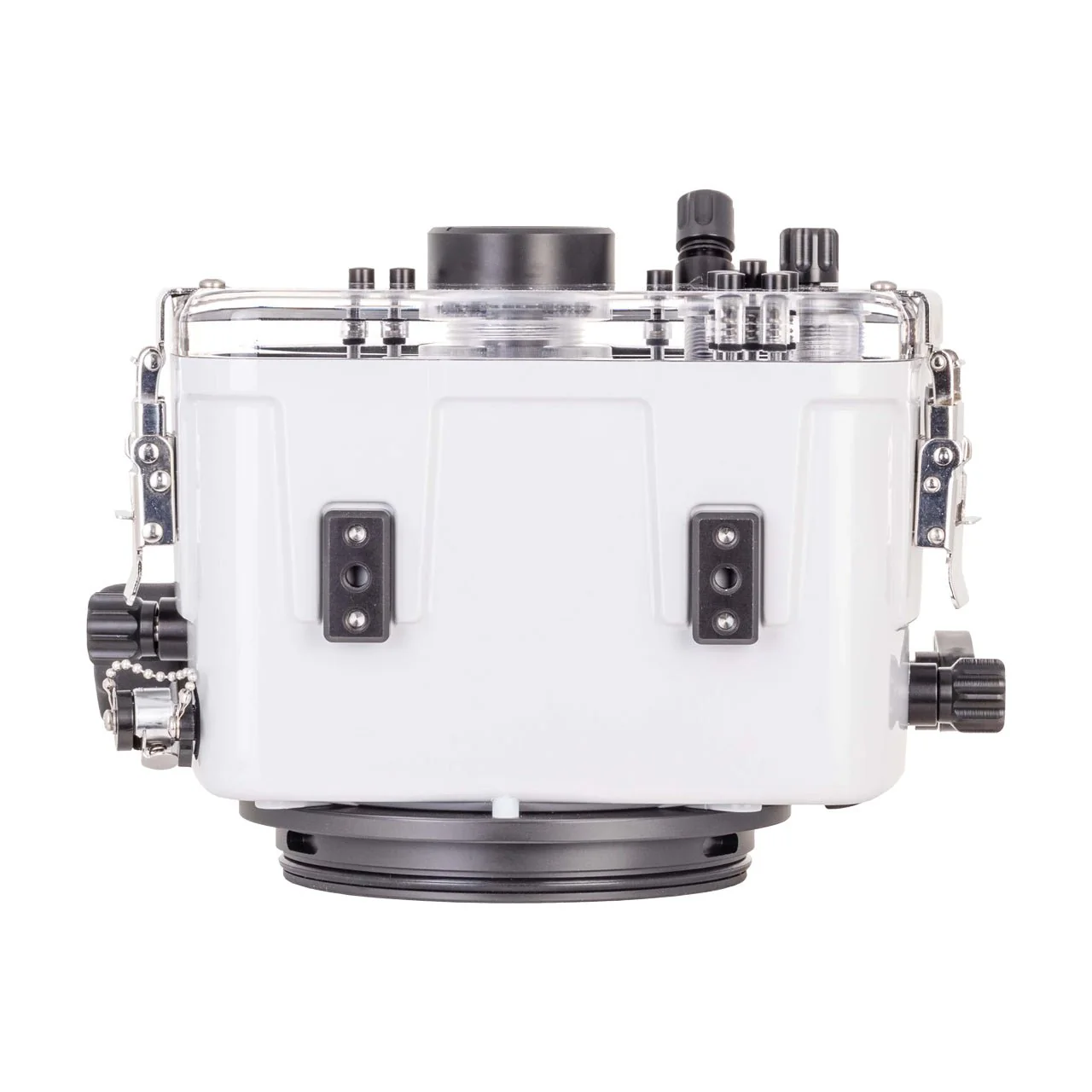

200DL Underwater Housing for Nikon Z5 II Mirrorless Digital Cameras
A full-featured and highly durable waterproof housing designed for the Nikon Z5 II mirrorless digital camera. Ideal for scuba diving, snorkelling, surf, pool work, and any environment in or around water.Lens Port Required
The housing requires a compatible DL lens port (sold separately) to ensure waterproof operation. Choose the correct port based on the lens you plan to use. Our DL-series ports offer excellent image quality and are some of the lightest available on the market.
Made in the USA
Our housings are engineered for full camera control and ready connection to external strobes out of the box. Advanced features including TTL flash exposure and enhanced viewfinders are also available.
Controls
Full control is provided for all essential camera functions, except joystick directional controls, Fn1, Fn2, dioptre adjustment dial, and depth-of-field (DOF) preview button.
Construction
The housing is made from a specially formulated ABS-PC blend that is significantly lighter than aluminium, yet rugged enough for professional use. Its light-coloured exterior helps keep the camera cooler during extended shooting in sunny conditions.
Pre-Dive Checks & Leak Detection
Our signature open-groove O-ring design makes it easy to inspect the seal. Once closed, you can clearly see the O-ring forming a watertight seal. The included vacuum pump allows for reliable leak testing before each dive.
Lens Support
Supports a wide variety of Nikon Z-mount lenses. Most popular zoom lenses and select focus rings can be operated with the help of separate zoom and focus gears (sold separately). Our ports are designed to be lightweight yet durable enough for rough surf.
Wi-Fi Transfer
Use the Nikon Z5 II’s built-in Wi-Fi feature to transfer images wirelessly to a nearby device. This function works only above water within short range.
Strobe Connector
Ikelite bulkhead with manual hotshoe connection.
Port Mount
DL (Dry Lock) system.
Accessory Port
M16 thread for optional accessories.
Depth Rating
60 metres (200 feet)
Weight
2.1 kilograms
Dimensions
22 x 17.5 x 16.5 cm
O-Rings
Rear O-ring: #0132.59
Front O-ring: #0132.45
Compatibility
This housing is designed specifically for the Nikon Z5 II. It is not compatible with other camera models. The housing does not support the use of add-on grips, battery grips, eyepieces, or similar accessories.
In the Box
- 200DL Housing for Nikon Z5 II
- Rear O-ring #0132.59 (installed)
- Front O-ring #0132.45 (installed)
- Zoom Gear Retainer #75900 (installed)
- Port Hole Cover #0200.92 (installed)
- Waterproof Bulkhead Cap #9104.7 (installed)
- Base with Left-Hand Quick Release Handle #4077.67 (installed)
- Tool for Zoom Gear Retainer #0945.06
- 0.050" Hex Key #0945.11
- 1/16" Hex Key #0945.16
- Silicone Lubricant (1cc tube)
