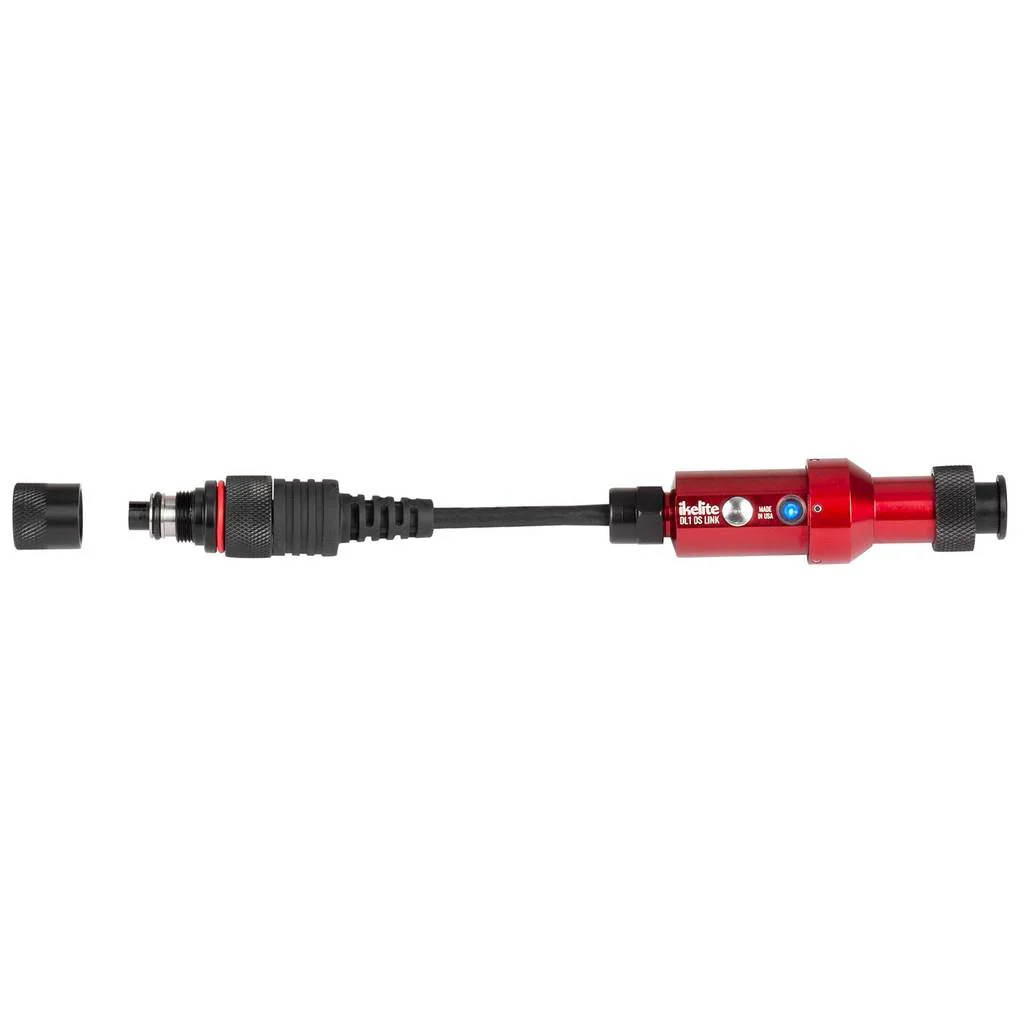

DL1 DS Link Nikon TTL Converter

Ikelite pioneered underwater TTL flash exposure for DSLR and mirrorless cameras, and this is the latest iteration of its world-renowned Nikon TTL flash circuitry. Designed with a Nikonos N5 connector, this converter is compatible with a wide variety of DSLR and mirrorless housings from other manufacturers.

Key Advantages

• Faster, more accurate, and more reliable than fibre optic TTL triggers
• Always ready – no batteries required
• Switch between TTL and manual exposure with the press of a button
• Supports flash exposure (EV) compensation set in the camera
• Supports rear curtain sync
• Improves strobe battery life and recycle time
• One TTL converter supports a wide selection of camera models
• Independently waterproof sealed
• Standard Nikonos N5-type connector at housing end

About Nikon TTL

TTL, or "Thru-the-Lens" flash metering, allows the camera to evaluate the scene and communicate exposure information directly to a compatible flash. The camera automatically adjusts the power output of the external flash, eliminating the need for manual adjustments. TTL exposure is faster and typically more accurate than setting the flash output manually. It can make the difference between capturing a properly exposed image or missing the shot, especially when photographing fast-moving subjects or those moving towards or away from the camera. TTL is the easiest way to achieve perfectly exposed macro photography, allowing greater focus on framing and composition. TTL is also effective for wide-angle or close-focus wide-angle (CFWA) shots. Simply set the camera to expose the background correctly, and the DL1 will adjust the strobe intensity for proper foreground exposure. Ikelite was the first company to introduce TTL for underwater strobes with Nikon DSLR cameras and continues to set the industry standard for Nikon TTL flash accuracy.

Electrical Flash Triggering

Connecting an electrical sync cord is as simple as screwing in a light bulb. Electrical triggering provides greater accuracy, faster rapid firing, and fewer missed flashes compared to fibre optic triggering. Using electrical TTL also significantly extends strobe battery life.

Compatibility Requirements

Housing Compatibility

Compatible with non-Ikelite housings for Nikon DSLR & Mirrorless cameras featuring a TTL flash hotshoe and Nikonos N5 bulkhead. If unsure whether a housing meets these requirements, contact the manufacturer.

Camera Compatibility

• Nikon D2X, D3, D4
• Nikon D40, D50, D60, D70, D70s, D80, D90
• Nikon D200, D300, D300s
• Nikon D500
• Nikon D600, D610, D700, D750
• Nikon D800, D810, D850
• Nikon D5000, D5100, D5200, D5300, D5500, D5600
• Nikon D7000, D7100, D7200, D7500
• Nikon Z5
• Nikon Z50
• Nikon Z6, Z6 II
• Nikon Z7, Z7 II

Strobe Compatibility

• DS50 strobes: above serial number 75510 (with update)
• DS51 strobes: above serial number 78700
• DS125 strobes: above serial number 7928
• DS160, DS161 strobes: all
• DS200 strobes: above serial number 7163
• Not compatible with non-digital Ikelite strobes (SS50, SS200, SS400, Ai, 100/A)
• Not compatible with SEA&SEA, INON, or other non-Ikelite strobes

Sync Cord Compatibility

• Ikelite Housing to Ikelite Strobes # 45151
• Ikelite Housing to Two Ikelite Strobes # 45152
• Ikelite Housing to Ikelite Strobe # 4103.51 (out of production)
• Ikelite Housing to Two Ikelite Strobes # 4103.52 (out of production)

The Ultimate Flexibility

Switching between TTL and manual flash exposure modes is effortless with the press of a button. A super-bright LED indicator light provides clear mode visibility. In TTL mode, flash exposure (EV) compensation is easily adjustable through the camera’s menus. The DL1 DS Link fully supports rear curtain sync flash modes and is independently waterproof sealed. A dual sync cord allows firing of two strobes in TTL from a single DL1 DS Link converter.

Specifications

• Weight: 89g (3.1 oz)

In The Box

• DS1 DS Link TTL Converter
• Silicone Lubricant 1cc Tube # 5020
