AOI DLP-05 4-inch Glass Dome Port for PEN Mount

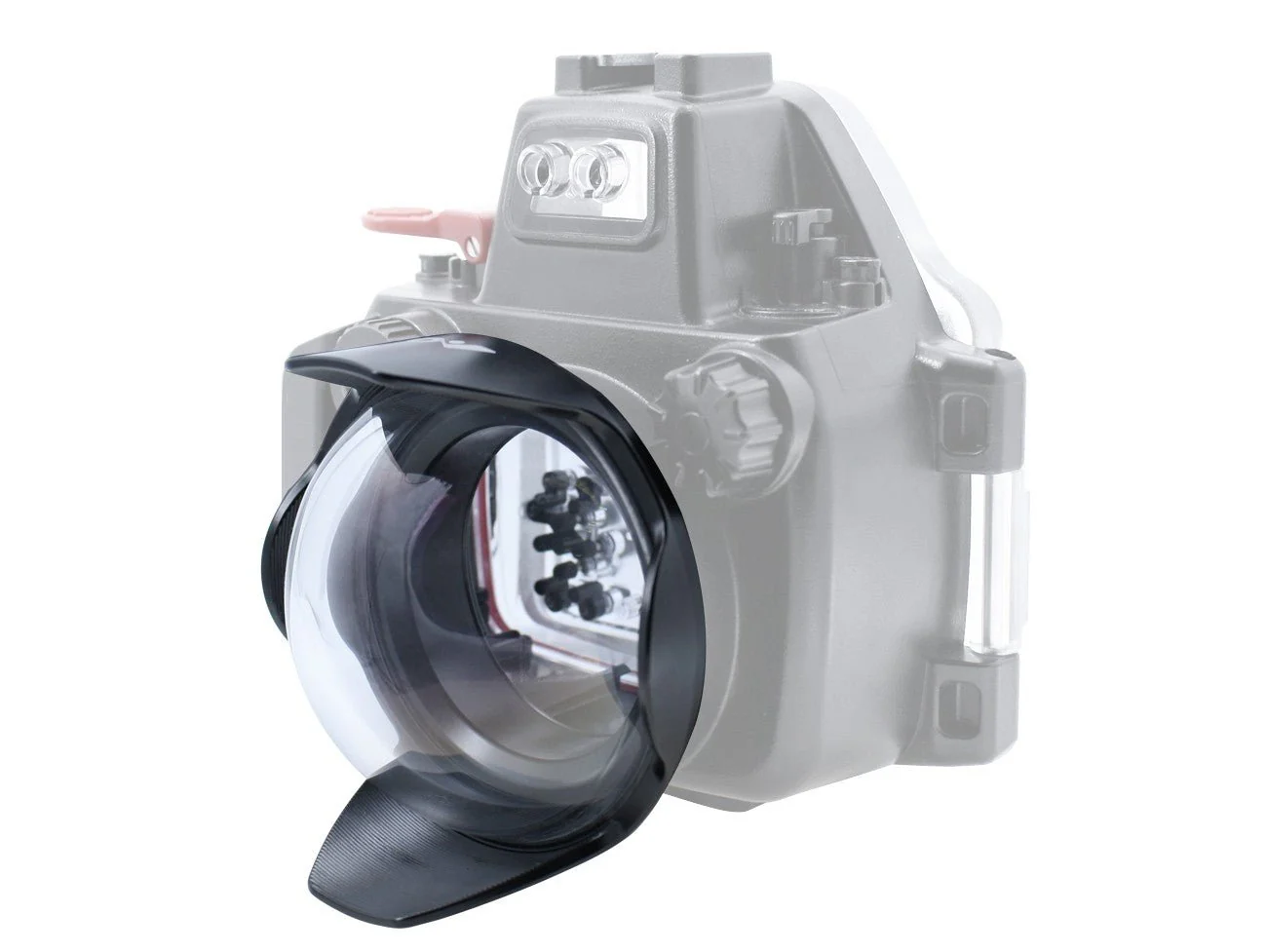

AOI DLP-05 4-inch Glass Dome Port for Olympus PEN Mount Housing
Capture wide shots of fish, coral, and other sea life at depths up to 200' with this AOI DLP-05 Underwater Glass Dome Lens Port for Panasonic's Lumix G 8mm f/3.5 Fisheye. It is compatible with Olympus underwater housings for their PEN series cameras. Using the optional AOI AD-LP-01 adapter, you can mount the port onto Olympus OM-D housings. The dome-shaped front element corrects for the size distortion that occurs underwater, which causes everything to look larger and closer. Designed especially for very wide-angle lenses like the 8mm, it enables you to reduce the amount of water between you and your subjects for clearer, more accurate images, while fitting more in the frame.
The front element is crafted from optical glass with an anti-reflection coating on the inner surface. The tulip-shaped dome shade blocks stray light to prevent lens flare, while also offering some added protection against impact and allowing the port to maintain a light weight. Built for durability, the port body is made from aluminum that has been hard anodized for resistance to corrosion.
Specifications
| Model | DLP-05 |
| Description | 4” Glass Dome Port for Olympus PEN Mount Housing |
| Recommended for | Camera Housings : Olympus Housing PT-EP05/06/08*/10/11*/12/13/14* (* must add ADAPTER AD-LP-01) Camera Lenses : Panasonic 8mm Fisheye Lens / M.Zuiko Digital ED 8mm F1.8 Fisheye PRO-BK# (# must add Extension Ring ER-PN_PN-24 or ER-OD_OD-22) |
| Material | Hard Anodized Aluminum Alloy Barrel Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating |
| Dimension | 113mm (L) X68.7mm (H) |
| Weight | 384 grams (Without Front Cover and Rear Port Cap) |
| Accessories | Neoprene Dome Front Cover (DNC-01) and Silicone Rear Port Cap (PRC-02) |
