AOI UH-OM5 Olympus OM5 Housing for Olympus / OM System OM-5 Camera

Product Details

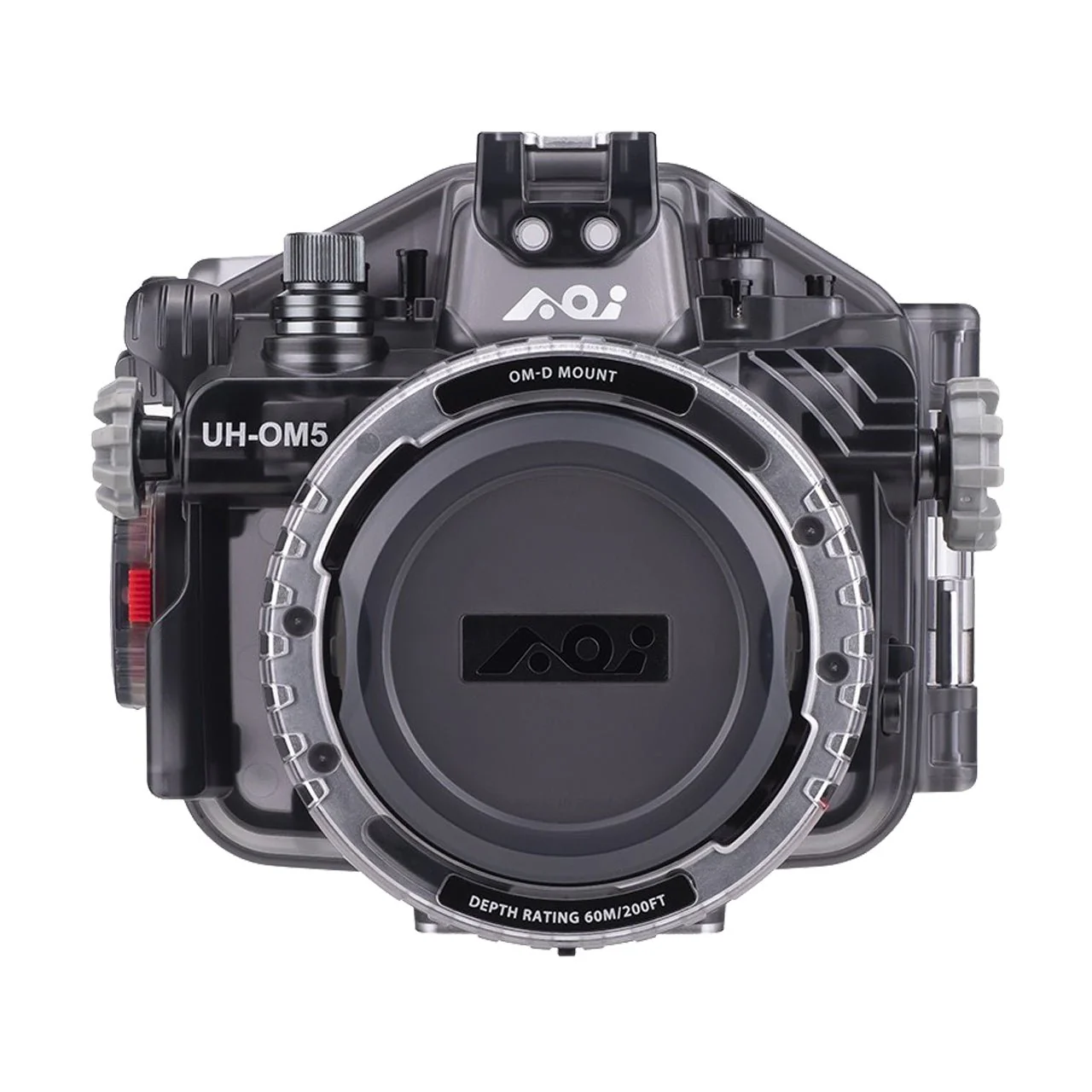

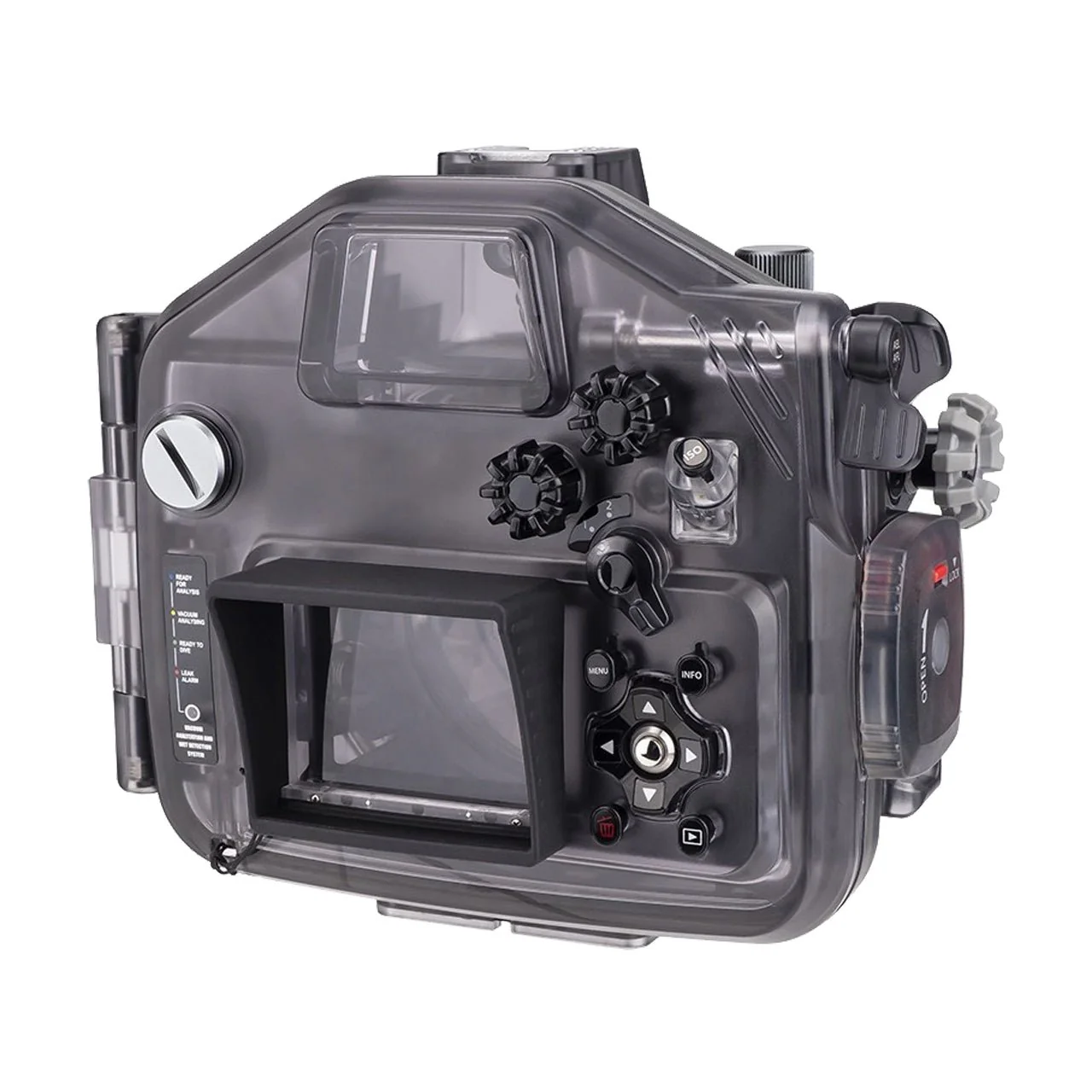

The AOI UH-OM5 housing accommodates the Olympus / OM System OM-5 mirrorless camera.

A Port is required to make this housing waterproof (not included). Compatible with AOI / Olympus OM-D Ports System.

This high-quality underwater housing is lightweight and ergonomic with all the camera controls accessible and at your fingertips. It is made of polycarbonate with a depth rating of 60 meters (200 ft).

To trigger external strobes this housing can be used with either the Olympus FL-LM3 Flash or the AOI LED flash trigger STR-05 (optional) and a dedicated underwater strobe from AOI, Sea&Sea, Ikelite, Inon etc. (available separately). The STR-05 LED flash trigger will allow you to trigger an external strobe using a fibre optic cable.

Best of all this housing has a built-in vacuum monitoring & wet detection system to safeguard your investment. It also comes with a spare M16 bulkhead.

Housing Overview

Why compromise when you can have it all? The AOI UH-OM5 Olympus OM5 Housing for Olympus / OM System OM-5 Camera enables you to get more out of your underwater photo system than ever before and for a great price! It’s rugged and durable yet lightweight and compact. With extra vacuum protection and a leak detector, it’s practical, yet ergonomic and stylish. This housing is as easy to handle as a point-and-shoot camera and yet packed with extra features to enable pro-level photography. Want even more? Just add one of many additional accessories offered by AOI to enhance your UH-OM-5 housing and meet your photography needs. Camera and Lens not included.

Housing Features

Durable, shock-resistant design
Depth rated to 60 meters (200 ft)
Lightweight and compact
Extra protection with a Vacuum Analyzation and Wet Detection System (VWS) and secure lock
Advanced ergonomics allow use even with gloves, an extended shutter release lever is included to make the trigger easier to use when using a base tray with a handle.
Clearly marked controls allow full access to essential camera functions.
Full accessory package available: Compatible with most common underwater housing accessories using these connection points: 1/4” tripod thread, cold shoe mount, LCD monitor hood rails, lanyard loops, 67mm lens port thread, QRS slots and fibre optic cable ports.
A Port is required to make this housing waterproof (not included)
An optical flash trigger (AOI-STR-05) is available as an optional extra which saves camera battery life.
The housing platform gives you the option to grow as your skills do: Explore advanced possibilities with dedicated camera lenses and AOI’s OM-D Mount type lens ports using the UH-OM-5 housing interchangeable lens port design.

Specifications

MODEL NUMBER	AOI UH-OM5
DESCRIPTION	Underwater Housing for OM System OM-5 Camera
HOUSING COLOUR	AOI UH-OM5-TGRY
HOUSING COLOUR	Translucent Grey
COMPATIBLE CAMERA MODELS	OM System OM-5
MAIN MATERIAL	Housing Body: Polycarbonate
DEPTH RATING	60 Meters
LENS PORT SYSTEM	AOI / Olympus OM-D Ports System
WATER LEAKAGE PROTECTION	Built-in Vacuum Analyzation and Wet Detection System (VWS)
BATTERY POWER	Built-in Rechargeable Lithium Polymer Battery (3.7V)
BATTERY CHARGING	By USB Charger DC5V, 0.5A (not included) Approx. 1.5 hours for a full charge
BATTERY OPERATION TIME	Approx. 100 hours
DIMENSIONS	206.20mm (W) x 181.70mm (H) x 113.55mm (D)
WEIGHT	On Land: Approx. 1340g (Only included LCD Monitor Hood and Lanyard)
STANDARD ACCESSORIES	Body Cap / Storage Box for OM-D Mount Housing (AOI BC-01)
	USB Type-C Charging Cable (AOI USBC-02)
	LCD Monitor Hood (AOI LCDH-01)
	Spare O-Ring for Vacuum Valve Protection Cap x 1pc. (AOI SRVV-01)
	Vacuum Pump (AOI VP-02); Extended Shutter Release Lever (AOI ESL-02-TGRY)
	Spare Main Seal O-Ring x 1pc. (AOI SOR-02)
	Spare Secondary Seal Ring x 1pc. (AOI SSR-02)
	Silicone Grease (AOI SIGR-5); Silica Gel (AOI SIGE-3) x 1pc.
	Lanyard (AOI LYD-01); Fibre Optic Cable Port Plug x 2pcs. (AOI OCP-PS-05)
	O-Ring Remover (AOI ORR-02)
